1.7380 (10CrMo9-10) directly from stock & cut to your required dimensions!
![[Translate to Englisch:]](/fileadmin/user_upload/produkt-fotos/1.7380_Stahlzuschnitt.jpg "[Translate to Englisch:]")
![[Translate to Englisch:]](/fileadmin/user_upload/produkt-fotos/1.7380_Flachstahl.jpg "[Translate to Englisch:]")
![[Translate to Englisch:]](/fileadmin/user_upload/produkt-fotos/1.7380_Blech.jpg "[Translate to Englisch:]")
1.7380 | 10CrMo9-10 is a heat-resistant special structural steel. It is mainly used in boiler and apparatus construction for boiler drums and pressure vessels. The material is suitable for temperatures up to 550°C.
1.7380 | 10CrMo9-10 can be readily welded. It is recommended to preheat up to 200°C.
| 10CrMo9-10 1.7380 | C | Si | Mn | P | S | Cr | Mo | Ni | V |
|---|---|---|---|---|---|---|---|---|---|
| min. | 0,08 | 0,40 | 2,0 | 0,9 | |||||
| max. | 0,14 | 0,50 | 0,80 | 0,02 | 0,01 | 2,5 | 1,1 |
| 10CrMo9-10 1.7380 | Al | Cu | N | Nb | Ti | Sonstiges |
|---|---|---|---|---|---|---|
| min. | ||||||
| max. | 0,30 | 0,012 |

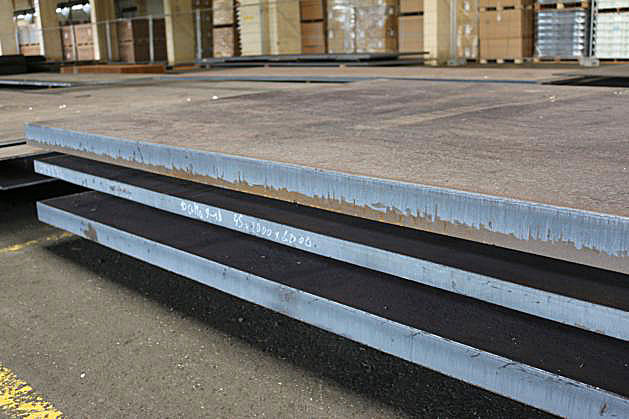

plates, rolled, normalized and tempered

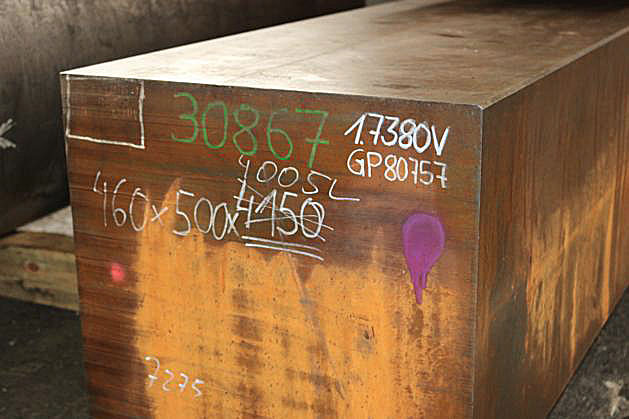

flat, forged, quenched and tempered
The processing with the saw is a mechanical processing of the material, which results in a significantly lower unintended deformation and increased hardness for the existing structure, such as the thermal cutting.
Thus, the machined workpiece has a homogeneous structure even at the edge, which does not change in the continuation of the material.
This circumstance allows immediate finishing of the workpiece with milling or drilling . So it is not necessary to anneal the material or make a similar operation beforehand.
Do you have any questions?
We are happy to answer your questions and make you an offer for these and other materials. Contact us now for more information.
Your contact person Kevin Simon Bräunig+49 (0) 35263-665-27braeunig@stahlportal.com
Notice: Specifications contained in following data sheet are provided as a description, liability is excluded!
